Wieża Marantz w oryginalnej szafce, lata 70

[irek200]

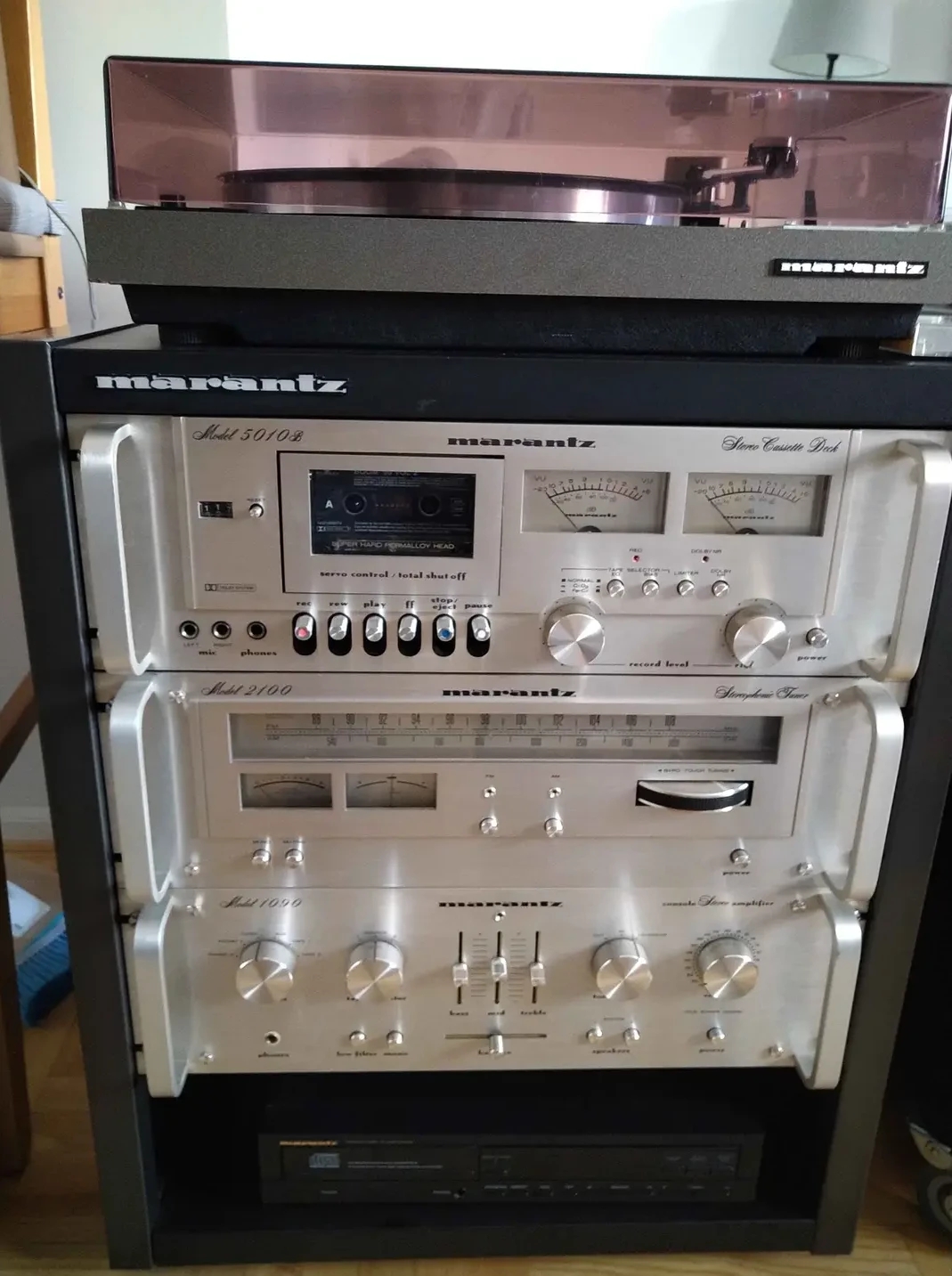

Sprzedam wieżę Marantz w oryginalnej szafce. Na system składa się: gramofon 6050, wzmacniacz Model 1090, tuner Model 2100, magnetofon Model 5010B, odtwarzacz CD Marantz 583.

Cena 5200 zł.

Opcjonalnie do zestawu można kupić także kolumny Marantz HD44 w czarnej lub brązowej okleinie.

Ze względów oczywistych zapraszam na odsłuch i odbiór osobisty w Warszawie, na Górnym Mokotowie.

Specyfikacja techniczna:
Gramofon Marantz 6050 (wkładka Ortofon 5e, igła nowa, Nadel 5 S, pokrywa po polerowaniu)
Specifications:
Speeds: 33 and 45rpm
Speed range: +-1.3%
Drive system: belt drive
Drive motor: 4-pole synchronous AC motor
Platter weight: 1.6lbs
Platter diameter: 300mm
Rumble: -60dB
Wow and flutter: 0.08%
Tonearm effective length: 215mm
Overhang: 15mm
Tracking force adjustment range: 0 to 3.0g
Dimensions: 450 x 153 x 350mm
Weight: 5.9kg

Wzmacniacz Marantz Model 1090
Stereophonic Amplifier (1977-80)
Specifications:
Power output: 45 watts per channel into 8 (stereo)
Frequency response: 10Hz to 60kHz
Total harmonic distortion: 0.1%
Damping factor: 45
Input sensitivity: 1.8mV (MM), 180mV (line)
Signal to noise ratio: 76dB (MM), 88dB (line)
Output: 775mV (line), 1.5V (Pre out)
Dimensions: 416 x 146 x 301mm
Weight: 9.5kg

Radio Marantz Model 2100
AM/FM Stereophonic Tuner (1978-80)
Specifications:
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
Sensitivity: 1.8uV (FM), 15uV (MW)
Signal to Noise Ratio: 72dB (FM), 50dB (MW)
Distortion: 0.6% (FM), 0.5% (MW)
Selectivity: 70dB (FM), 46dB (MW)
Frequency response: 30Hz to 15kHz (FM), 40Hz to 2.3kHz (MW)
Semiconductors: 3 x IC, 9 x transistors, 7 x diodes, 1 x MosFET
Dimensions: 416 x 146 x 239mm
Weight: 6kg

Odtwarzacz kasetowy Marantz Model 5010B
Front Loading Cassette Deck (1978-80)
Specifications:
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x DC servo control
Tape Type: type I, FeCr, CrO2
Noise Reduction: B
Frequency Response: 40Hz to 16kHz (CrO2 tape)
Wow and Flutter: 0.12%
Total Harmonic Distortion: 1.8%
Semiconductors: 22 x transistors, 3 x IC, 25 x diodes, 2 x LED
Dimensions: 416 x 146 x 297mm
Weight: 6.7kg
Year: 1978

Odtwarzacz CD Marantz 583
Specifications:
Digital converter: TDA1541A, 16 bit, 4 x oversampling
CD Mechanism: CDM-4/19
Frequency response: 2Hz to 20kHz
Dynamic range: 96dB
Signal to Noise Ratio: 102dB
Total harmonic distortion: 0.0015%
Line output: 2V
Dimensions: 360 x 82 x 300mm
Weight: 3.5kg
Year: 1989
